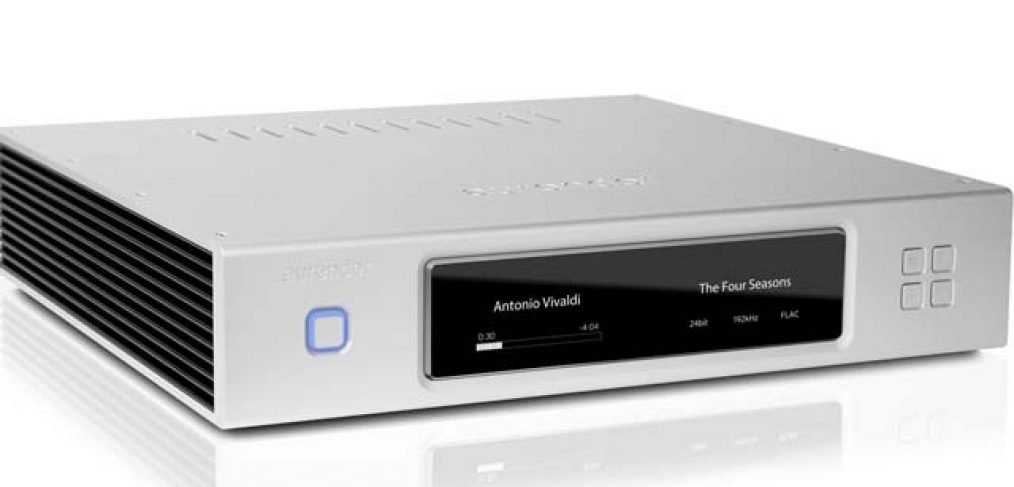

aurender N10 Caching Music Server
On-the-fly precision DSD to PCM Conversion by FPGA
Designed to be used with high performance digital-to-analog converters, the Aurender N10 is the only Music Player to support on-the-fly precision DSD to PCM conversion by FPGA.
With 4TB of (2TBx2) internal hard disk drives and one 240GB solid-state drive cache for playback, the N10 is the perfect solution for even the most extensive high resolution music collections.
Designed to keep the noise system noise level as low as possible
Dual linear power and special shielding prevent noise from being delivered to sensitive DACs for the best sound reproduction.
Full Range of Digital Audio Outputs and Ports for Network Connectivity
Designed to be matched with high performance digital-to-analog converters, the Aurender N10 is equipped with various SPDIF outputs (BNC, AES/EBU, coaxial, optical) and one dedicated USB Audio Class 2.0 output. For network connectivity and file transfers, the N10 comes with one a Gigabyte Ethernet port and two USB 2.0 data ports.
Aurender App Packed with Convenient Features for Full-Function Control
The Aurender Conductor App turns the iPad into a versatile user interface for Aurender Music Server/Players. All settings and functions of the Aurender Server/Music Player can be easily accessed through the Settings menu, and the Aurender App comes with extensive features to make managing, viewing and playing high resolution music collections a breeze.
Oven-Controlled Crystal Oscillator (OCXO) for long-term jitter reduction
OCXOs are among the most accurate and stable clocks in use today, and are orders of magnitude more accurate and stable than commonly used ordinary crystal oscillators usually found in computers. Temperature changes cause crystal oscillations to fluctuate, which can lead to jitter in the digital audio signal. Moreover, ordinary crystals are much less stable and lose accuracy over time. In OCXO clocks, a very stable, high-grade crystal oscillator is enclosed in a compartment and kept at a constant temperature to prevent jitter from temperature fluctuations.
FPGA-based All Digital Phase-Locked Loop System
An All Digital Phase-Locked Loop system (ADPLL) incorporating Field-Programmable Gate Arrays (FPGA) with OCXO clocks precisely times digital audio data transmissions and minimizes jitter to below negligible levels
4TB Hard Disk Drive Storage with Solid-State Drive Cache for Playback
Two internal hard drives provide 4TB of storage and a 240G solid-state drive is used to cache music for playback. If a selected song or album is already cached to the solid-state drive, the hard drive will remain asleep. This minimizes wear and tear on the hard drive. By caching songs to the solid-state drive for playback, electrical and acoustic noise resulting from spinning disks, moving heads and motors are also completely eliminated.
Dedicated USB Audio Class 2.0 Output with Ultra Low Noise Power Circuitry
The dedicated USB Audio Class 2.0 output is designed to deliver an exceptionally transparent audio signal free of noise, and is shielded from outside electronic interference.
AMM and NAS(Network-Attached Storage) Support
If you already have NAS set-up, the Aurender N10 is able to play music stored on NAS devices,
AMM(Aurender Media Manager) software is available for Mac(OS X 10.9 or later) /Windows7 or later
You can run AMM software on your platform of choice, please specify the location of your content on NAS then it will automatically find the Aurender in you local network and make a combining music database. It’s transparent to the user, so once you run AMM , you can select the music with all the meta-data using the Aurender Conductor App without the knowledge of the location of your music files.
Remote Internet Technical Support
Sending a Remote Support Request through the Aurender App allows engineers to quickly diagnose and fix problems over the Internet.
|Compatible Formats||DSD(DSF, DFF), WAV, FLAC, AIFF, ALAC, M4A, APE and others|
|Bit and Sample Rates||SPDIF : Up to 24-bit, 192kHz (PCM); 1-bit, 2.8MHz (DSD64)
USB : 32bit /384kHz, 1-bit, 2.8MHz (DSD64); 1-bit, 5.6MHz (DSD128)
|User Software||Aurender Conductor iPad App, Android App (Lite Version)|
|Solid-State Drive||1 x 240 GB|
|Hard Disk Drives||4TB / 8TB|
|SPDIF Clocking||FPGA-based All Digital Phase Locked Loop|
|Digital Audio Outputs||1 coaxial, 1 optical, 1 AES/EBU, 1 BNC, 1 USB Audio Class 2.0|
|Digital I/O||1 Gigabit LAN, 2 x USB 2.0|
|CPU Board||Proprietary Aurender Board|
|Finish||Silver or Black|
|Dimensions||430mm x 83mm x 353mm
16.93in x 3.27in x 13.9in
|Power Consumption||Play(27W), Peak(37W), Standby(3.1W)|
