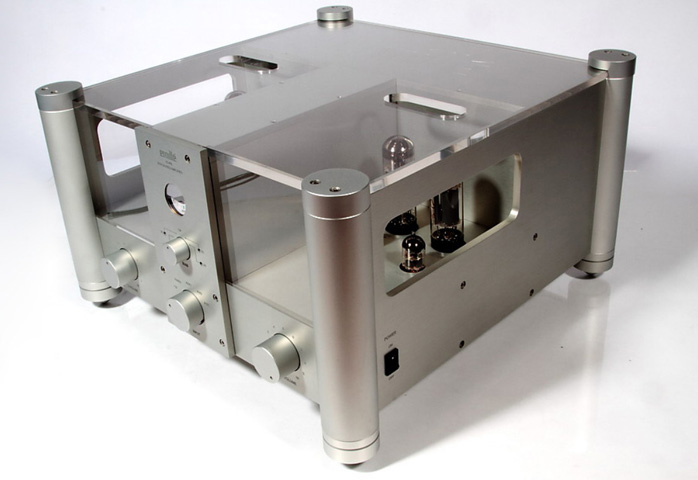

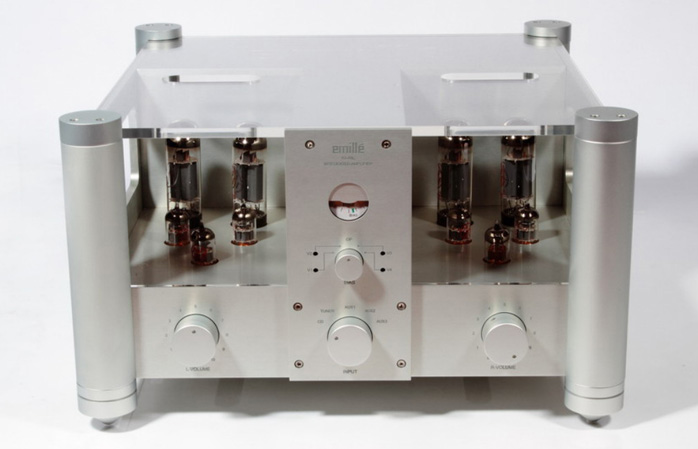

Emille Labs KI-40L Tube Integrated Amplifier

Author
admin
Date
2018-09-18 12:42
Views
1401
Emille Labs 의 진공관 인티 앰프, U$2,500


[SPECIFICATIONS]

• Type : 2-channel stereo integrated amplifier
• Input : 5 X RCA
• Function : Power on-off, Input selector, Volume control
• Output Power : 40W×40W ( T.H.D 2%)
• Input sensitivity : 0.2V rms
• Speaker Impedance : 4, 8 ohms
• Frequency Response : 15Hz ~ 30KHz (±1dB)
• Output Tube Bias Type : Adjustable Fixed Bias
• AC Power Requirements : 117 volts AC 60Hz
• AC Power Consumption : 240 Watts
• Tube lineup : KT77×4, ECC82×4, ECC81×2
• Dimensions : 457mm(W)×460mm(D)×256mm(H)
• Net weight : 62 lbs
• Gross weight : 78 lbs

[FEATURES]

1. Aluminum panel, anodized chassis
2. Handcrafted output transformers M6 grade lamination

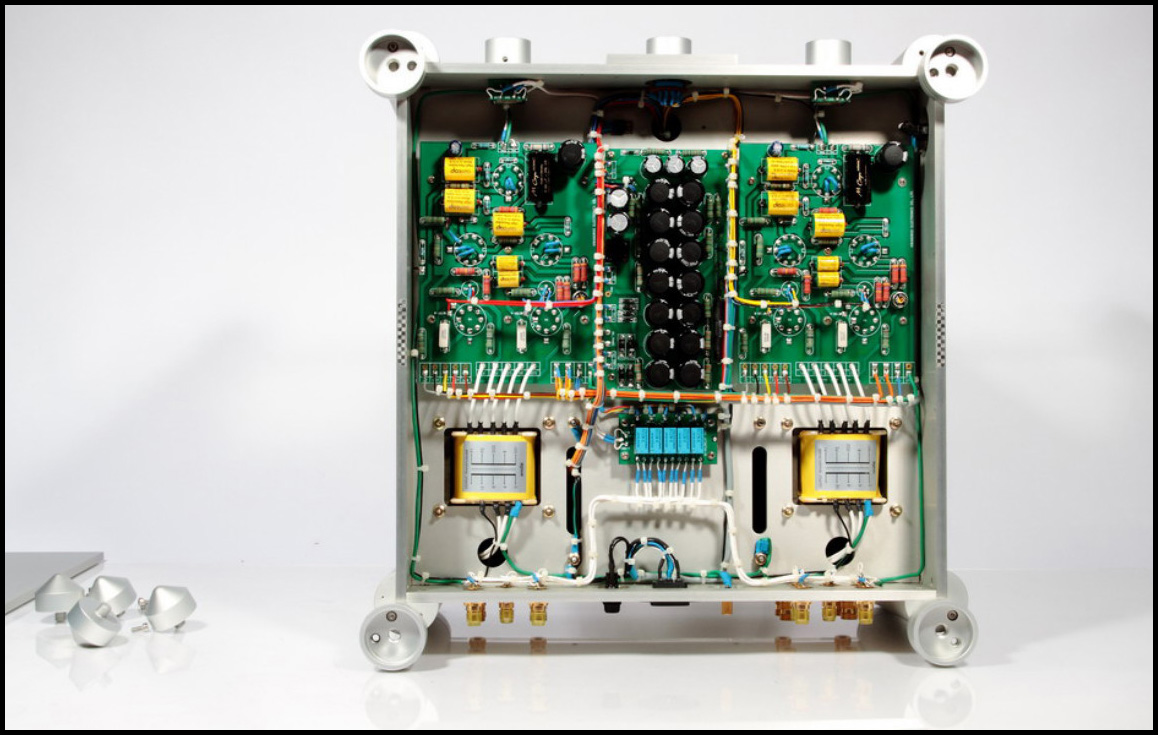

3. True Dual Mono circuitry
4. Gold plated glass epoxy pcbs with 2oz copper thickness
5. Audiophile grade components :
- Precision resistors
- Alps Japan blue velvet volume control
- Jantzen superior coupling capacitors
- Auricap coupling capacitors
- Silver plated wiring
- Very Large filter capacity
6. Premium gold plated RCA connectors and binding posts
7. Factory selected tubes
8. Bias meters(For output tube current adjustment)
9. Genelex gold lion KT-77 tubes
